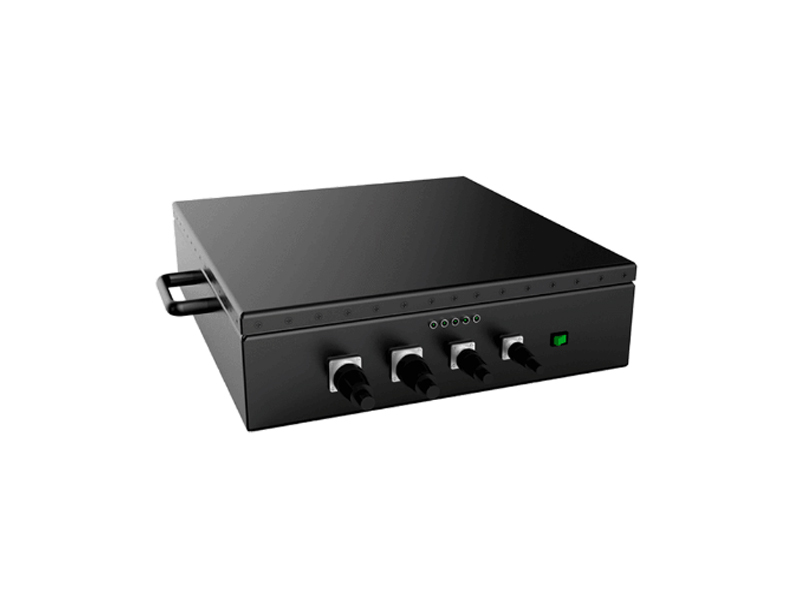

48V 150Ah AGV LiFePO4 Battery for Electric Vehicles
| Place of Origin | China |
|---|---|
| Brand Name | JHOTA |
| Minimum Order Quantity | 5 |
| Price | Negotiable |
| Packaging Details | Carton |
| Delivery Time | 20-30 days |
| Payment Terms | T/T |
| Supply Ability | 500pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Communication Base Station Battery | Nominal Voltage | 48V |
|---|---|---|---|
| Nominal Capacity | 150Ah | Cycle Life | 2000 Times |
| Warranty | 5 Years | ||
| Highlight | 48V 150Ah AGV LiFePO4 battery,electric vehicle lithium battery,LiFePO4 battery for AGV |
||
Product Description
Specification
| Item | Parameter |
|---|---|
| Nominal Voltage | 48V |
| Rated Capacity | Nominal Capacity: 150Ah, Minimum Capacity: 148Ah |
| Charging Voltage | 54.8V |
| Charging Method | Constant Current / Constant Voltage |
| Discharge Cut-off Voltage | 34.5V |
| Rated Charging Current | ≤50A |
| Maximum Continuous Charging Current | ≤150A |
| Internal Resistance | <100mΩ |
| Rated Discharge Current | ≤50A |
| Maximum Continuous Discharge Current | ≤150A (not exceeding 1 hour) |
| Overcharge Protection Voltage | 3.65±0.05V (adjustable) |
| Over-discharge Protection Voltage | 2.3±0.01V (adjustable) |
| Overcurrent Protection | Discharge overcurrent value: ≥450A |
| Short Circuit Protection |
Condition: External circuit short, Recovery: Disconnect short circuit |
| Operating Temperature Range | Charge: 0~55°C, Discharge: -20~55°C |
| Storage Temperature Range | Less than 7 days: 20~65°C |
| Weight | Approx. 38kg |
| Dimensions | Customizable |
Product Description:
Electric Vehicle Battery Pack 48v 150ah AGV Vehicle Battery Lifepo4 Battery
Advantages:
1. Extended Operational Runtime and High Energy Density;
2. Superior Power Delivery for Demanding Tasks;
3. Enhanced Safety and Robust Battery Protection;
4. Wide Operating Temperature Range for Reliability
1. Extended Operational Runtime and High Energy Density;
2. Superior Power Delivery for Demanding Tasks;
3. Enhanced Safety and Robust Battery Protection;
4. Wide Operating Temperature Range for Reliability
Application:
1.Goods-to-Person Systems: Powers AGVs that transport entire shelves of inventory to picking stations, requiring sustained high energy
for continuous movement and lifting.
2.Pallet Transport: Provides the necessary current surge for heavy-duty forklift AGVs to lift and move palletized goods (500kg - 1000kg+).
3. Sortation and Distribution: Fuels AGVs in parcel sorting hubs, enabling rapid acceleration, constant travel, and high throughput with
minimal charging downtime.
