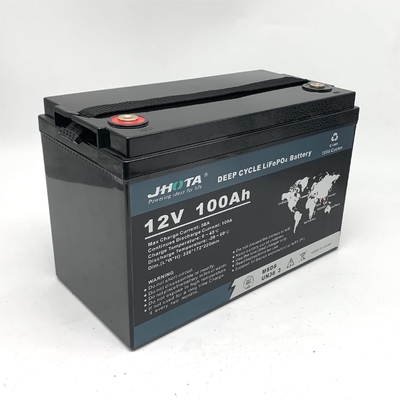

Customized Capacity 12.8V 100Ah Lithium Deep Cycle Battery Low Self Discharge

  • Customized Capacity 12.8V 100Ah Lithium Deep Cycle Battery Low Self Discharge
  • Customized Capacity 12.8V 100Ah Lithium Deep Cycle Battery Low Self Discharge
Place of Origin China
Brand Name JHOTA
Certification shipping report
Model Number JHOTA-12.8V-100Ah
Minimum Order Quantity 4
Price Based on the price of the day
Packaging Details Carton
Delivery Time 60 days
Payment Terms T/T, L/C, D/A, D/P
Supply Ability 20 days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Name JHOTA Product Lithium Ion Batteries
Dimension 328*172*220mm Cycle Life 3000 Times
Weight 13.1kg Rated Capacity 100Ah
Open Voltage 12.8V Internal Impedance 45mΩ
High Light

12.8v 100ah lithium deep cycle battery

,

Customized 12.8 v 100ah lifepo4 battery

,

1280Wh lifepo4 battery 12.8 v 100ah
Leave a Message
Product Description

Customzied Capacity 12.8V 100Ah With Deep Cycle Power And Low Self-Discharge



Quick Details:

1.Extremely Long cycle Life

2.The design life is up to 5 Years

3.In parallel or in series

4.Mobile Phone APP monitoring

5.Ultra Safe

6.OEM&ODM contact me



Description:

This battery is a lithium battery that replaces lead-acid batteries. The rated voltage of the battery is 12.8V and the rated capacity is 100Ah. The battery adopts the appearance of a square aluminum shell and is composed of a single cell 4S1P.

The battery has excellent temperature stability, can withstand high temperature of 80 degrees, no thermal runaway, no risk of fire or explosion. This battery has a long cycle life of up to 2500 cycles.

The finished battery pack can support 50A continuous discharge. It has a strong depth of discharge and is much lighter than traditional lead-acid batteries. The single cell used for combination can be selected according to customer requirements.



Specification:

Nominal Voltage 12.8V
Nominal Capacity 100Ah@0.2C
Energy 1280Wh
Internal Resistance ＜45mΩ
Cycle Life 3000Cycles @0.2C Charging/Discharging,Until 70% Capacity
Self Discharge ＜3.5% per month at 25℃
Max.Charging Voltage 14.0-14.6V
Charging Mode At 0℃-45℃ temperature,charged to 14.6V at a constant current of 0.2C5A,and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C5A
Charging Current 20A
Max.Charging Current 50A
Discharging Current 20A
Max.Continuous Current 100A
Max.Pulse Current 200A(＜3S)
Discharging Cut-Off Voltage 10.0
Charge Temperature 0℃-45℃ @60±25% Relative Humidity
Discharge Temperature -20℃-60℃ @60±25% Relative Humidity
Storge Temperature 0℃-45℃ @60±25% Relative Humidity
Water Dust Resistance IP55
Cell&Format IFR32700 N60,4S17P
Casing Plastic
Dimension(L*W*H*Th) 328*172*215*220mm
Weight Approx. 13.1kg
Terminal M8



FAQ:

1.Q: Do you accept OEM/ODM?

A: Yes,it is available.We have OEM group to design battery case.

2.Q:Do you have Blue-tooth communication with your batteries?

A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.

3.Q:Are you battery real capacity?

A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.

4.Q: What kind of certificates do you have?

A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.

5.Q: What is the biggest difference between your battery and other suppliers?
A1: Over 10 Years production experience with this model battery; Battery made of UN38.3 MSDS certificated battery cell, PCB structure Battery module, Build in Smart BMS for protection;
6.Q: What's the Lead time of the battery?
A2: 3-10 work days; Specific Lead time depend on the quantity and requirement


Image:

Customized Capacity 12.8V 100Ah Lithium Deep Cycle Battery Low Self Discharge 0

Customized Capacity 12.8V 100Ah Lithium Deep Cycle Battery Low Self Discharge 1Customized Capacity 12.8V 100Ah Lithium Deep Cycle Battery Low Self Discharge 2
