OEM Lithium Battery Lead Acid Replacement Lifepo4 12.8V 9AH Battery For Electric Gate
| Place of Origin | China |
|---|---|
| Brand Name | JHOTA |
| Certification | shipping report |
| Model Number | JHT-LFP12.8V9Ah |
| Minimum Order Quantity | 10 |
| Price | Negotiable |
| Packaging Details | Carton |
| Delivery Time | 60 days |
| Payment Terms | T/T |
| Supply Ability | 10pieces, 15 days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand Name | JHOTA | Nominal Voltage | 12.8V |
|---|---|---|---|
| Nominal Capacity | 9Ah(customized) | Impedance | ＜80mΩ |
| Dimension | 151*65*94mm | Weight | 1.34kg |
| Cycle Life | 3000times | Warranty | 5 Years |
| High Light | OEM 9AH Battery For Electric Gate,Electric Gate 12.8V 9AH Battery,12.8V 9AH Battery For Electric Gate |
||
Product Description
Rechargeable lithium ion lifepo4 12.8V 9AH battery pack replacement lead acid battery
Application
1.UPS
2.Solar & Wind Power System
3.Golf Cart
4.Electrical Vehicle, E-bike, E-rickshaw. etc
5.Lightning
Description:
This battery is a lithium battery that replaces lead-acid batteries. The rated voltage of the battery is 12.8V and the rated capacity is 9Ah.
The battery has excellent temperature stability, can withstand high temperature of 80 degrees, no thermal runaway, no risk of fire or explosion. This battery has a long cycle life of up to 3000 cycles.
It has a strong depth of discharge and is much lighter than traditional lead-acid batteries. The single cell used for combination can be selected according to customer requirements.
Specification:
| Nominal Voltage | 12.8V |
| Nominal Capacity | 9Ah@0.2C |
| Energy | 115.2Wh |
| Internal Resistance | ＜80mΩ |
| Cycle Life | 3000 Cycles @0.2C Charging/Discharging,Until 70% Capacity |
| Self Discharge | ＜3.5% per month at 25℃ |
| Max.Charging Voltage | 14.0-14.6V |
| Charging Mode | At 0℃-45℃ temperature,charged to 14.6V at a constant current of 0.2C5A,and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C5A |
| Charging Current | 1.8A |
| Max.Charging Current | 4.5A |
| Discharging Current | 1.8A |
| Max.Continuous Current | 9A |
| Max.Pulse Current | 20A(＜3S) |
| Discharging Cut-Off Voltage | 10.0 |
| Charge Temperature | 0℃-45℃ @60±25% Relative Humidity |
| Discharge Temperature | -20℃-60℃ @60±25% Relative Humidity |
| Storge Temperature | 0℃-45℃ @60±25% Relative Humidity |
| Water Dust Resistance | IP55 |
| Cell&Format | IFR26650 N30,4S3P |
| Casing | Plastic |
| Dimension(L*W*H*Th) | 151*65*94*100mm |
| Weight | Approx. 1.34kg |
| Terminal | F2 |
FAQ
1.Q: Are you trading company or manufacturer?
A: We are original factory from shenzhen , China.
2.Q:Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
3.Q:Can your battery be wired in series or parallel?
A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.
4.Q:Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you need to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.
5.Q:What warranty do I have?
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.If any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.
6.Q: Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.

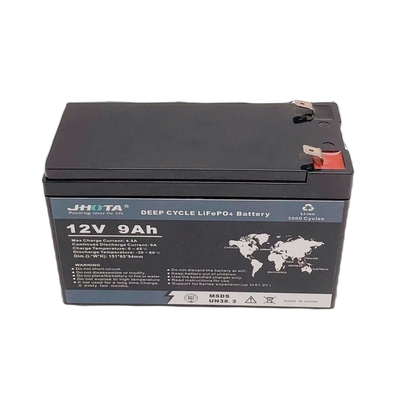

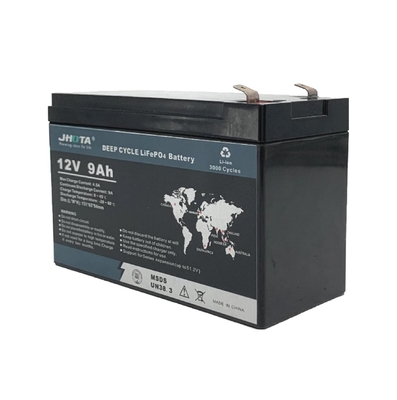

Product image:
